“Regression analysis is the hydrogen bomb of the statistics arsenal.” - Charles Wheelan
The steps we followed in developing a simple linear model are applicable to the multiple regression model.
Analyzing a Multiple Regression Model
Collect the sample data (i.e., the value of \(y\), \(x_1\), \(x_2\), …, \(x_k\)) for each unit in the sample.
Hypothesize the form of the model (i.e., the deterministic component), \(E(y)\). This involves choosing which independent variables to include in the model.
Use the method of least squares to estimate the unknown parameters.
Specify the probability distribution of the random error component \(\varepsilon\) and estimate its variance\(\sigma^2\).
Statistically evaluate the utility of the model.
Check that the assumptions on \(\varepsilon\) are satisfied and make model modifications, if necessary.
Finally, if the model is deemed adequate, use the fitted model to estimate the mean value of \(y\) or to predict a particular value of \(y\) for given values of the independent variables, and to make other inferences.
We will first assume the model is known and the assumptions hold. We will then come back to step 2 and step 6 later. Let’s first discuss what the assumptions are.
12.1 Model Assumptions
The assumptions for the multiple regression model are the same as the simple linear model. That is,
Linearity - We assume the model is linear in the parameters but not necessarily linear in the predictor variables. Thus, some of the predictor variables may need to be transformed.
constantvariance
normality
independence
The inferences on the multiple regression model will depend on these assumptions holding. We will discuss how to check these later.
12.2 A First-Order Model with Quantitative Predictors
Recall that a first-order model means that none of the predictor variables are functions of any other predictor variables.
When the independent variables are quantitative, the \(\beta\) parameters in the first-order model have similar interpretations as the simple regression model. The difference is that when we interpret the \(\beta\) that multiplies one of the variables (e.g., \(x_1\)), we must be certain to hold the values of the remaining independent variables (e.g., \(x_2\), \(x_3\)) fixed.
12.3 Testing the Utility of a Model: The Analysis of Variance \(F\)-Test
The objective of step 5 in a multiple regression analysis is to conduct a test of the utility of the model—that is, a test to determine whether the model is adequate for predicting \(y\).
Later, we will examine how to conduct \(t\)-tests on each \(\beta\) parameter in a model, where \[
\begin{align*}
H_0: \beta_j = 0, \qquad j=1, 2, \ldots, p-1
\end{align*}
\]
However, this approach is generally not a good way to determine whether the overall model is contributing information for the prediction of \(y\). If we were to conduct a series of \(t\)-tests to determine whether the independent variables are contributing to the predictive relationship, we would be very likely to make one or more errors in deciding which terms to retain in the model and which to exclude.
Suppose you fit a first-order model with 10 quantitative independent variables, \(x_1, x_2,..., x_{10}\), and decide to conduct \(t\)-tests on all 10 individual \(\beta\)’s in the model, each at \(\alpha = .05\).
For any one test, the probability of making a type I error is 0.05: \[
\begin{align*}
P(\text{Reject } H_0|\beta_j=0) &= {0.05}\\
& {= 1 - 0.95}
\end{align*}
\] If we were to do ten of these tests (one for each predictor variable), then the probability that at least one is a type I error is \[
\begin{align*}
P(\text{Reject at least one } H_0|\beta_1=\beta_2=\cdots=\beta_{p-1}=0)
& = 1-[(1-\alpha)^{10}]\\
& {= 1-(0.95)^{10}}\\
&{ = 0.401}
\end{align*}
\]
Even if all the \(\beta\) parameters (except \(\beta_0\)) in the model are equal to 0, approximately 40% of the time you will incorrectly reject the null hypothesis at least once and conclude that some \(\beta\) parameter is nonzero. In other words, the overall Type I error is about .40, not .05.
To illustrate this inflated type I error, let’s look at the following example.
Example 12.1 We will simulate a sample of size 200 with a response variable \(y\) and ten predictor variables \(x_1, x_2, \ldots, x_{10}\). The random error term \(\varepsilon\) will be a standard normal random variable.
The true model will have each coefficient \(\beta\) set to 0, with the exception of \(\beta_0\) which will be 20. We will conduct a \(t\)-test for each coefficient (except \(\beta_0\)). Since the true coefficient is 0, we expect to see p-values greater than 0.05 for each coefficient.
We will fit the model and test the coefficients 1000 times. We will count the number of times at least one of the coefficients was less than 0.05 (which would lead to a Type I error).
We see that 41.4% of the time, we had at least one coefficient have a p-value smaller than 0.05. This corresponds to the probability of at least one Type I error of around 0.401.
In multiple regression models for which a large number of independent variables are being considered, conducting a series of \(t\)-tests may cause the experimenter to include a large number of insignificant variables and exclude some useful ones. If we want to test the utility of a multiple regression model, we will need a globaltest (one that encompasses all the \(\beta\) parameters).
12.3.1 Partitioning the Sum of Squares
Recall when we discussed the coefficient of determination that we used \(SS_{yy}\) to denote the variability of the response variable \(y\) from its mean \(\bar y\) (without regard to the model involving \(x\)).
Another name for \(SS_{yy}\) is the sum of squares total (SSTO). We call it this since it gives us a measure of total variability in \(y\).
In multiple regression, SSTO is still the same as \(SS_{yy}\). In matrix notation this can be expressed as \[
\begin{align}
SSTO & ={\bf Y}^{\prime}{\bf Y}-\left(\frac{1}{n}\right){\bf Y}^{\prime}{\bf J}{\bf Y}
\end{align}
\tag{12.1}\]
Sum of Square Error (SSE)
Also recall the variability of \(y\) about the regression line (in simple linear regression) was expressed by SSE. We can think of this as the variability of \(y\) remaining after exampling some of the variability with the regression model.
In multiple regression, SSE is still the sum of the square distances between the response \(y\) and the fitted model \(\hat{y}\). Now, the fitted model is the fitted hyperplane instead of a line.
The SSE can be expressed in matrix terms as \[
\begin{align}
SSE & =\left({\bf Y}-{\bf X}{\bf b}\right)^{\prime}\left({\bf Y}-{\bf X}{\bf b}\right)\\
& ={\bf Y}^{\prime}{\bf Y}-{\bf b}^{\prime}{\bf X}^{\prime}{\bf Y}
\end{align}
\tag{12.2}\]
Sum of Square Regression (SSR)
If SSTO is the total variability of \(y\) (without of regard to the predictor variables), and SSE is the variability of \(y\) left over after explaining the variability of \(y\) with the model (including the predictor variables), we might want to know the variability of \(y\) explained by the model.
We call the variability explained by the regression model the sum of squares regression (SSR).
We will show below that SSR can be expressed as \[
\begin{align}
SSR & =\sum\left(\hat{y}_{i}-\bar{y}\right)^{2}
\end{align}
\tag{12.3}\] which can be expressed in matrix terms as \[
\begin{align}
SSR & ={\bf b}^{\prime}{\bf X}^{\prime}{\bf Y}-\left(\frac{1}{n}\right){\bf Y}^{\prime}{\bf J}{\bf Y}
\end{align}
\tag{12.4}\]
Components of SSTO
To see how SSTO, SSR, and SSE relate to each other, consider how SSTO is a sum of squares of \(y\) from its mean \(\bar{y}\): \[
\begin{align*}
y_{i}-\bar{y}
\end{align*}
\]
We can add and subtract the fitted value \(\hat{y}_{i}\) to get \[
\begin{align*}
y_{i}-\bar{y} & =y_{i}-\hat{y}_{i}+\hat{y}_{i}-\bar{y}\\
& =\left(y_{i}-\hat{y}_{i}\right)+\left(\hat{y}_{i}-\bar{y}\right)
\end{align*}
\]
Squaring both sides gives us \[
\begin{align*}
\left(y_{i}-\bar{y}\right)^{2} & =\left[\left(y_{i}-\hat{y}_{i}\right)+\left(\hat{y}_{i}-\bar{y}\right)\right]^{2}\\
& =\left(y_{i}-\hat{y}_{i}\right)^{2}+\left(\hat{y}_{i}-\bar{y}\right)^{2}+2\left(y_{i}-\hat{y}_{i}\right)\left(\hat{y}_{i}-\bar{y}\right)
\end{align*}
\]
Summing both sides gives us \[
\begin{align*}
\sum\left(y_{i}-\bar{y}\right)^{2} & =\sum\left(y_{i}-\hat{y}_{i}\right)^{2}+\sum\left(\hat{y}_{i}-\bar{y}\right)^{2}+2\sum\left(y_{i}-\hat{y}_{i}\right)\left(\hat{y}_{i}-\bar{y}\right)\\
& =\sum\left(y_{i}-\hat{y}_{i}\right)^{2}+\sum\left(\hat{y}_{i}-\bar{y}\right)^{2}+2\sum\hat{y}_{i}e_{i}-2\bar{y}\sum e_{i}
\end{align*}
\]
Note that \(\sum\hat{y}_{i}e_{i}=0\) and \(\sum e_{i}=0\).
Therefore, we have \[
\begin{align*}
\sum\left(y_{i}-\bar{y}\right)^{2} & =\sum\left(\hat{y}_{i}-\bar{y}\right)^{2}+\sum\left(y_{i}-\hat{y}_{i}\right)^{2}\\
SSTO & =SSR+SSE
\end{align*}
\tag{12.5}\]

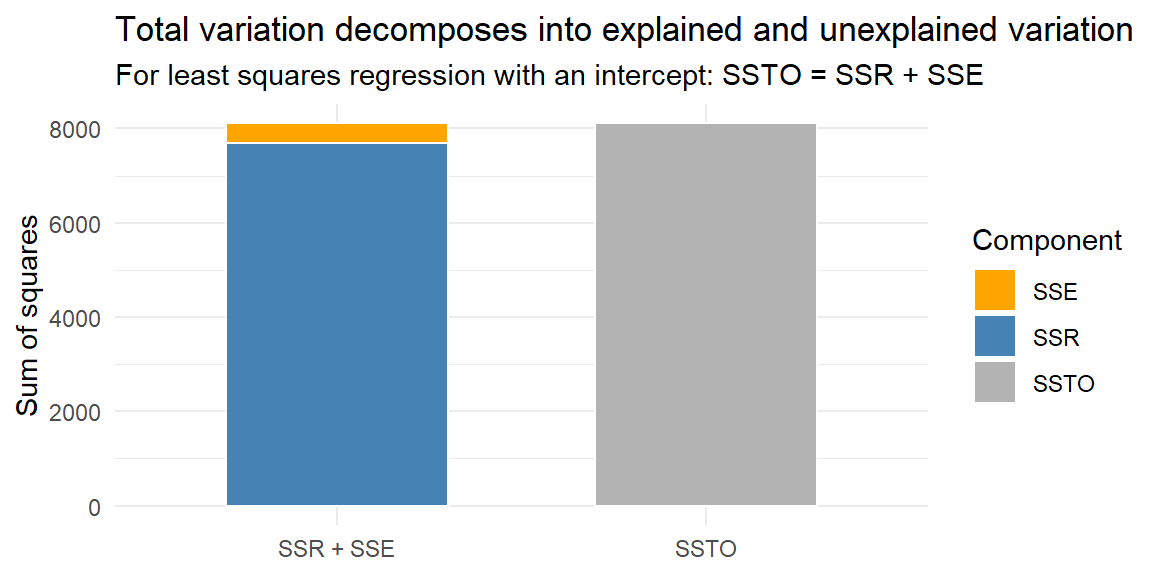

We call this the decomposition of SSTO.
Degrees of Freedom
The degrees of freedom can be decomposed as well. Note that the degrees of freedom for SSTO is \[
\begin{align*}
df_{SSTO} & =n-1
\end{align*}
\] since the mean of \(y\) is needed to be estimated with \(\bar{y}\).
The degrees of freedom for SSE is \[
\begin{align*}
df_{SSE} & =n-p
\end{align*}
\] since the \(p\) coefficients \(\beta_{0},\ldots,\beta_{p-1}\) need to be estimated with \(\hat{\beta}_{0},\ldots,\hat{\beta}_{p-1}.\)
For SSR, the degrees of freedom is \[
\begin{align*}
df_{SSR} & =p-1
\end{align*}
\] since there are \(p\) estimated coefficients \(\hat{\beta}_{0},\ldots,\hat{\beta}_{p-1}\) but need to estimate the mean of \(y\) with \(\bar{y}\).
Decomposing the degrees of freedom give us \[
\begin{align}
n-1 & =p-1+n-p\\
df_{SSTO} & =df_{SSR}+df_{SSE}
\end{align}
\tag{12.6}\]
12.3.2 The Analysis of Variance (ANOVA) Table
The sums of squares and degrees of freedom are commonly displayed in an analysis of variance (ANOVA) table:
Source
df
SS
MS
F
p-value
Regression
\(df_{SSR}\)
\(SSR\)
Error
\(df_{SSE}\)
\(SSE\)
Total
\(df_{SSTO}\)
\(SSTO\)
Mean Squares
Recall that if we divide SSE by its degrees of freedom, we obtain the mean square error: \[
\begin{align}
MSE & =\frac{SSE}{n-p}
\end{align}
\tag{12.7}\]
Likewise, if we divide SSR by its degrees of freedom, we obtain the mean square regression: \[
\begin{align}
MSR & =\frac{SSR}{p-1}
\end{align}
\tag{12.8}\]
These values are also included in the ANOVA table:
Source
df
SS
MS
F
p-value
Regression
\(df_{SSR}\)
\(SSR\)
\(MSR\)
Error
\(df_{SSE}\)
\(SSE\)
\(MSE\)
Total
\(df_{SSTO}\)
\(SSTO\)
Note that although the sum of squares and degrees of freedom decompose, the mean squares do not. That is \[
\begin{align*}
\frac{SSTO}{n-1} & \ne MSR+MSE
\end{align*}
\]
In fact, the mean square for the total (\(SSTO/n-1\)) does not usually show up on the ANOVA table.
12.3.3 The ANOVA F-test
We tested the slope in simple regression to see if there is a significant linear relationship between \(X\) and \(Y\).
In multiple regression, we will want to see if there is any significant linear relationship between any of the \(x\)s and \(y\). Thus, we want to test the hypotheses \[
\begin{align*}
H_{0}: & \beta_{1}=\beta_{2}=\cdots=\beta_{p-1}=0\\
H_{a}: & \text{at least one } \beta \text{ is not equal to zero}
\end{align*}
\]
To construct a test statistic, we first note that \[
\begin{align*}
\frac{SSE}{\sigma^{2}} & \sim\chi^{2}\left(n-p\right)
\end{align*}
\] Also, if \(H_{0}\) is true, then \[
\begin{align*}
\frac{SSR}{\sigma^{2}} & \sim\chi^{2}\left(p-1\right)
\end{align*}
\]
The ratio of two independent chi-square random variables divided by their degrees of freedom give a statistic that follows a F-distribution.
Since \(SSE/\sigma^{2}\) and \(SSR/\sigma^{2}\) are independent (proof not give here), then under \(H_{0}\), we can construct a test statistic as \[
\begin{align}
F^{*} & =\left(\frac{\frac{SSR}{\sigma^{2}}}{p-1}\right)\div\left(\frac{\frac{SSE}{\sigma^{2}}}{n-p}\right)\\
& =\left(\frac{SSR}{p-1}\right)\div\left(\frac{SSE}{n-p}\right)\\
& =\frac{MSR}{MSE}
\end{align}
\tag{12.9}\]
Large values of \(F^{*}\) indicate evidence for \(H_{a}\).
The test statistic and p-value are the last two components of the ANOVA table:
Source
df
SS
MS
F
p-value
Regression
\(df_{SSR}\)
\(SSR\)
\(MSR\)
\(F^{*}\)
\(P\left(Z\ge Z^{*}\right)\)
Error
\(df_{SSE}\)
\(SSE\)
\(MSE\)
Total
\(df_{SSTO}\)
\(SSTO\)
Example 12.2 We will fit a multiple regression model to the trees dataset. The tidymodels framework will be used.
library(tidyverse)library(tidymodels)data(trees)#prepare datadat_recipe =recipe(Volume ~ Girth + Height, data = trees) #setup modellm_model =linear_reg() |>set_engine("lm")#setup the workflowlm_workflow =workflow() |>add_recipe(dat_recipe) |>add_model(lm_model)#fit the modellm_fit = lm_workflow |>fit(data = trees)#to get the coefficientslm_fit |>tidy()
The fitted model is \[
\hat{y} = -57.988 + 4.708x_1 + 0.339x_2
\] For every one inch increase in Girth, the average Volume increases by 4.708 cubit ft, keeping Height fixed.
For every one ft increase in Height, the average Volume increases by 0.339 cubit ft, keeping Girth fixed.
#to get the global F-test p-valuelm_fit |>glance()
#To get the ANOVA table#Note that SSR is split into individual predictorslm_fit |>extract_fit_engine() |>anova()
Analysis of Variance Table
Response: ..y
Df Sum Sq Mean Sq F value Pr(>F)
Girth 1 7581.8 7581.8 503.1503 < 2e-16 ***
Height 1 102.4 102.4 6.7943 0.01449 *
Residuals 28 421.9 15.1
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Since the p-value of \(1.071\times 10^{-18}\) is less than 0.05, there is sufficient evidence to conclude that at least one of the coefficients is not zero.
